A Guide to BP Example States. BP Suspension/Activation.

RunaWFE Free Workflow System (BPMS) Version 4.4.2

© 2015-2021, "Process Technologies" Ltd, this document is available under GNU FDL license. RunaWFE Free is an open source system distributed under a LGPL license (http://www.gnu.org/licenses/lgpl.html).

A BP example can have the following status:

  • Active
  • Suspended
  • Ended
  • Failed

You can watch its status in the BP example properties (menu entry “Started processes”, BP example properties).

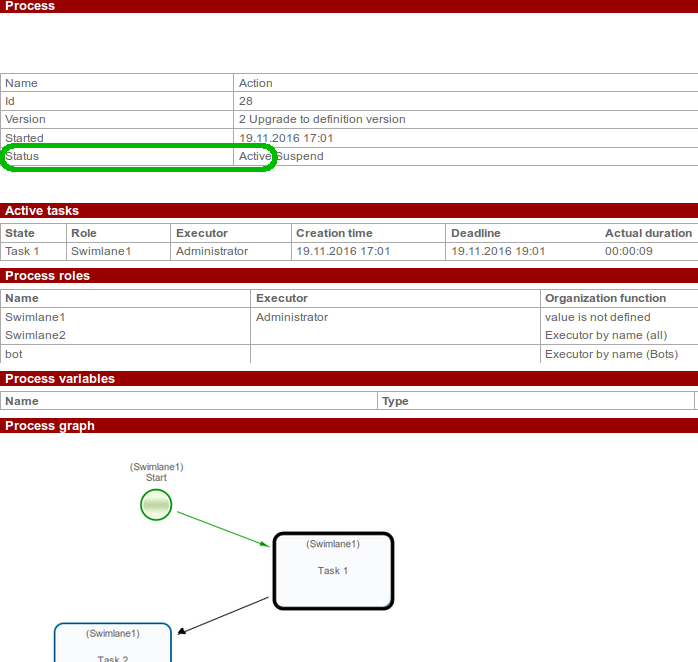

After starting the BP execution it acquires the status “Active”.

Bpstate en1.png

Upon ending or manual stopping (the “Stop” button) the status is “Ended”.

Bpstate en2.png

If an error occurs, the behaviour and status of a process depend on transaction settings. (see more at The Behaviour of Transactions When Executing Processes on the Server ).

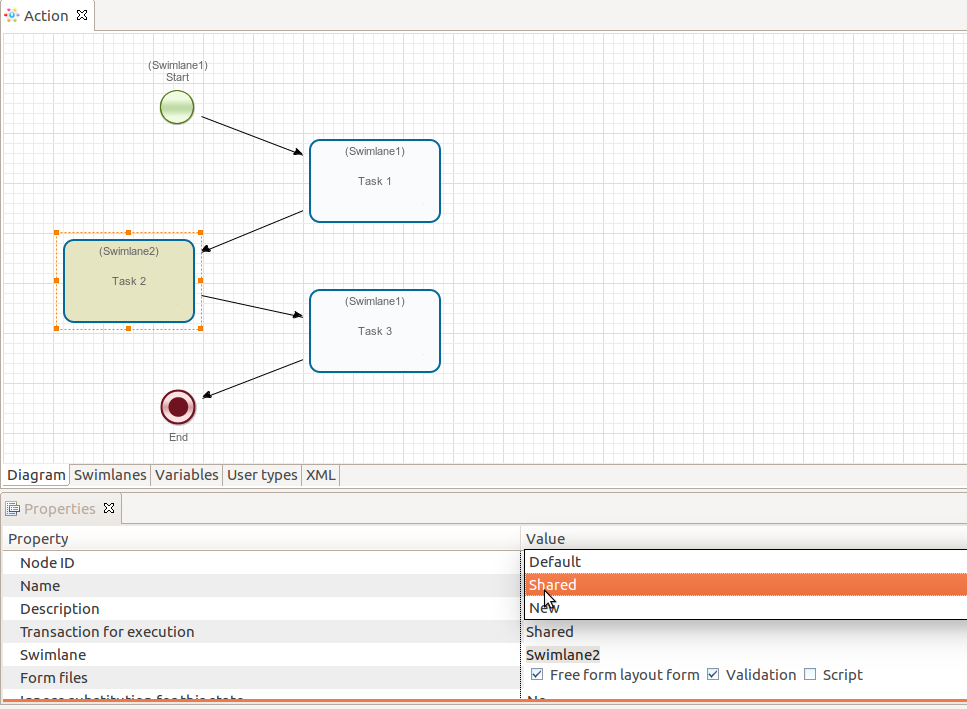

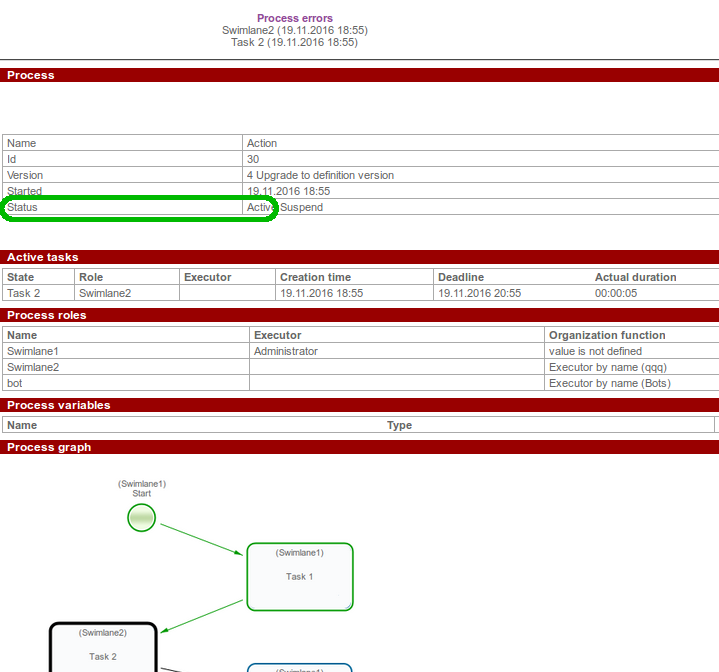

1). If a “Shared” transaction or a “Default” (not set) variant is used in the node where the error has occurred, then the process will be “Active” and the token will stay in the element (or return to the element), which has started the transaction. (see more at Description - pre 4.3.0)

Bpstate en3.png
Bpstate en4.png

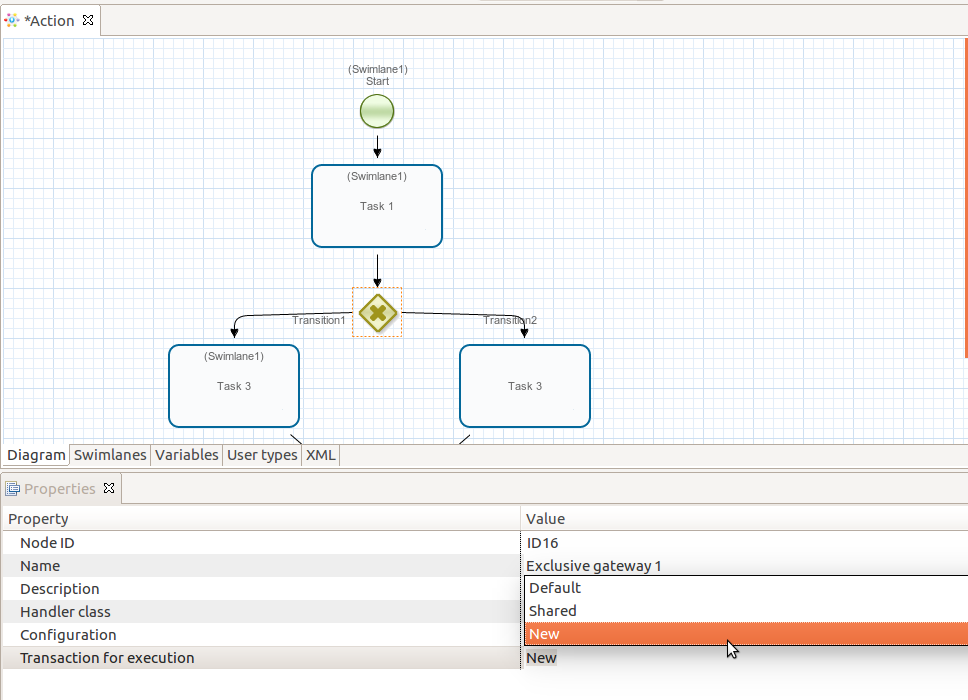

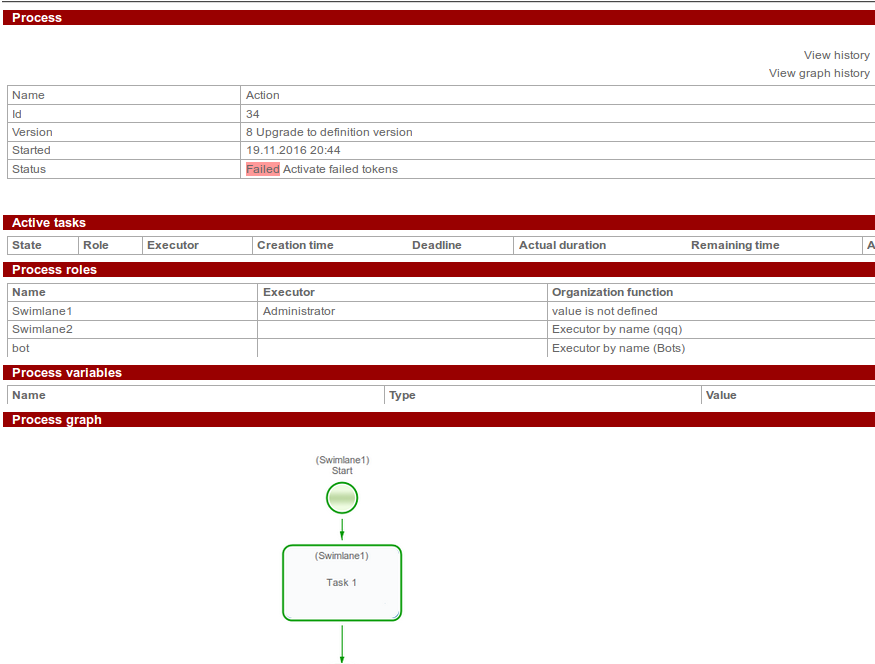

2) If a “New” transaction is used in the node where an error occurred (see more at Transaction boundary configuration in version 4.3.0), then the process status will change into “Failed”, the token will stay in the “problem” node.

Bpstate en5.png
Bpstate en6.png

After correcting an error (for example, by altering the process or entering extra data) an administrator can activate failed tokens by means of the corresponding link (available only for users included in the Administrators group).

Bpstate en7.png

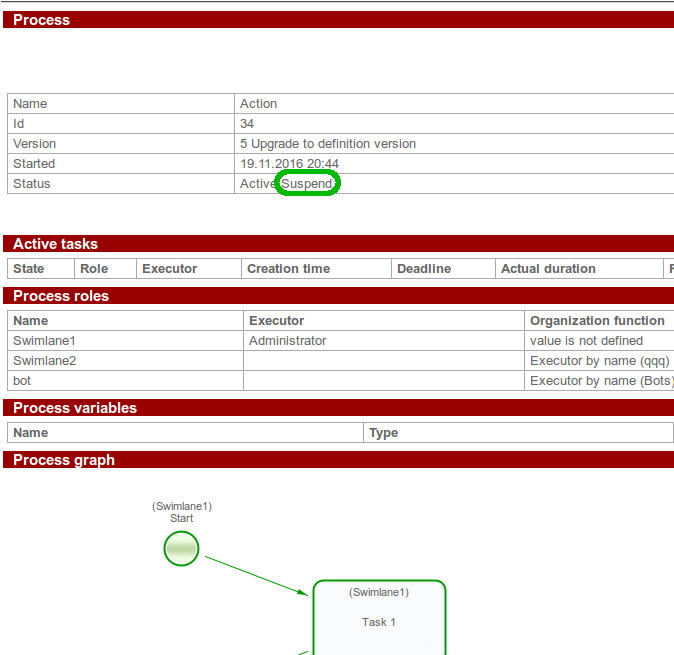

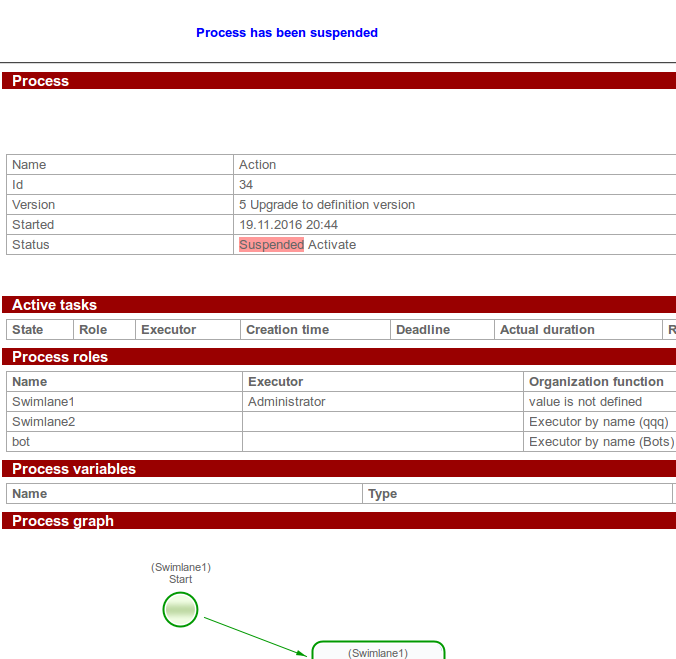

For the users included in the administrators group the links “Activate” and “Suspend” are available in the BP example properties. They are used correspondingly for manual suspension and activation (after suspension) of process execution.

Bpstate en8.png
Bpstate en9.png

On manual suspension the entire subprocess hierarchy down stops and acquires the status “Suspended”, the same way on activation (status - “Active”).

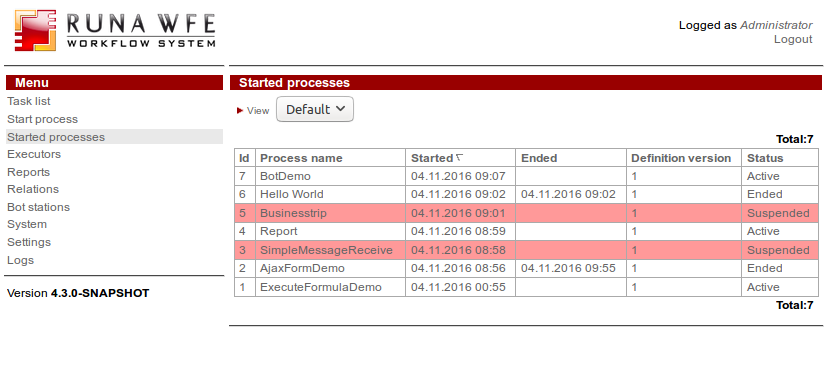

Aside from BP example properties, you can see status of processes execution in the corresponding column at the “Started processes” page. The examples with “Suspended” and “Failed” status are highlighted in red.

Bpstate en10.png
