Developer Studio Synchronization

RunaWFE Free Workflow System (BPMS) Version 4.4.2

© 2015-2021, "Process Technologies" Ltd, this document is available under GNU FDL license. RunaWFE Free is an open source system distributed under a LGPL license (

# Synchronization Settings

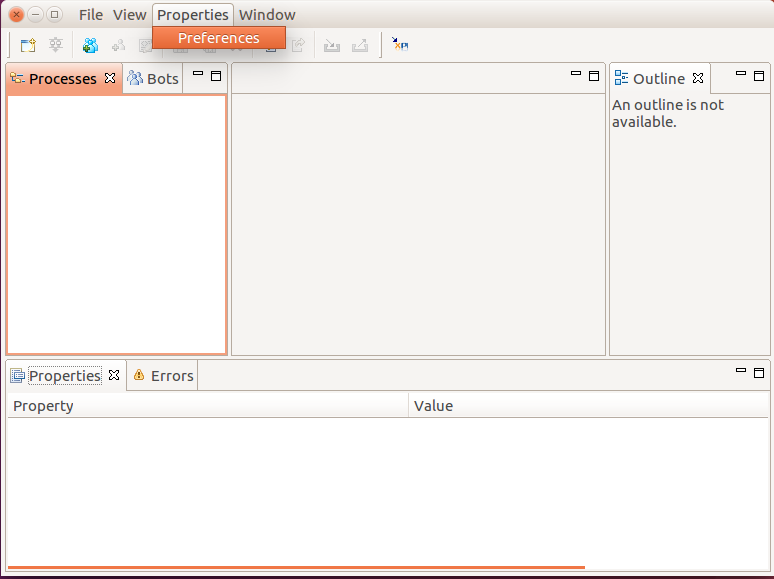

For the proper execution of import or export of process definitions you need to configure the synchronization of the Developer Studio with the RunaWFE server. Enter the preferences menu of the Developer Studio - “Properties” → “Preferences”.

Synsettings en1.png

Go to “RunaWFE Server” menu.

Synsettings en2.png


  • Connection – the Jboss version RunaWFE Server is deployed on.
  • Server hostname and server port – RunaWFE Server address.
  • Server version – the “auto” value is used for automatic definition of the Server version.
  • Login mode – using login and password or using Kerberos protocol.
  • Login and password – the login and the password respectively of a user, who possesses the right to “Load process definition” (set on the System page of the RunaWFE Server’s web-interface)
  • “Load process definition history” - this option enables the import of all the versions of a process definition there are on the RunaWFE Server to the Developer Studio. On default this option is disabled.

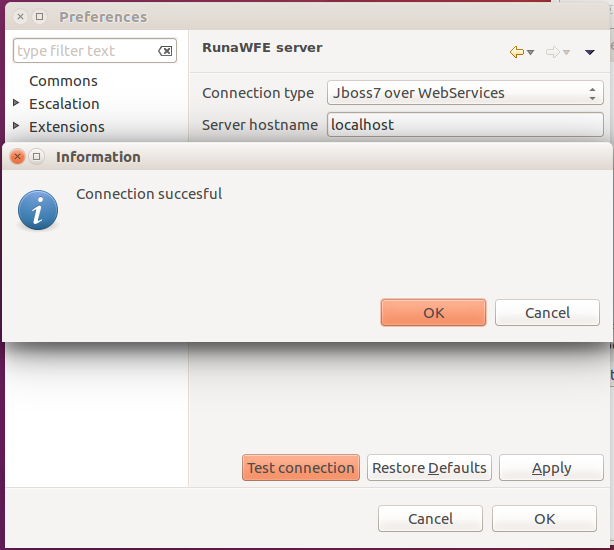

After entering the parameters test the connection by means of the corresponding button. If the connection is successful, the message “Connection successful” will be displayed.

Synsettings en3.png

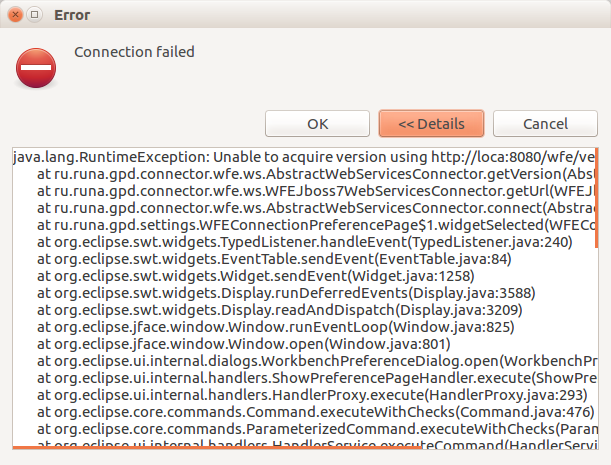

Otherwise the message “Connection failed” would be displayed, if you press the “Details” button, you can find out what the problem is.

Synsettings en4.png

# Synchronization of the Developer Studio with the RunaWFE Server

To import a process definition from the RunaWFE Server use the “File” menu, then “Import Process”.

Choose the “Import from WFE server” option.

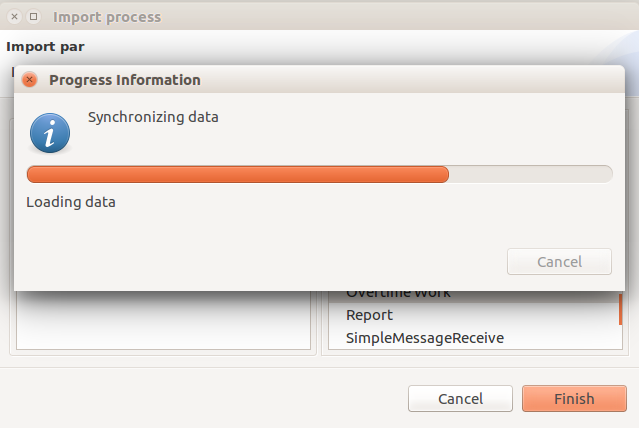

There is a specific feature of the import execution: when you call on this operation for the first time, a synchronization will be done automatically, you will see the progress information window showing how data are being loaded from the WFE Server.

Synsettings en5.png

Later (before rebooting the Developer Studio) to update the list of process definitions available for import, you should do the synchronization manually by means of the corresponding option.

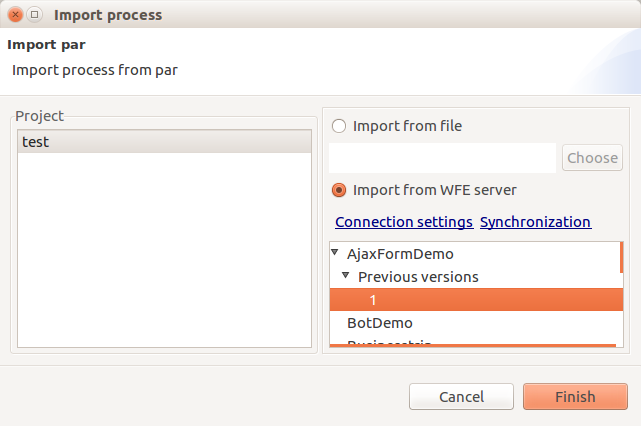

If the option “Load process definition history” is enabled in the synchronization settings (which you can open right here by means of “Connection settings”), then the previous versions available on the WFE Server would also appear in the list of definitions.

Synsettings en6.png

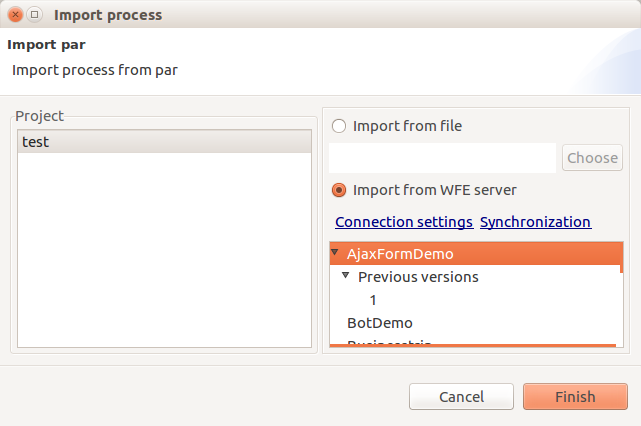

To import the latest version highlight the element with the name of the imported process, to import the previous version highlight the corresponding element in the “Previous versions” section. For example, in the following screenshot you can see that there are two versions of the AjaxFormDemo business-process available for import – one main and one previous.

Synsettings en7.png

To export a process definition to the WFE Server use the “File” menu, then “Export process”. Besides, you can use “Export process” option of a context menu opened on a process in the project explorer. If a project with the same name already exists on the Server, a new version of it would be exported.
