RunaWFE Free Workflow System (BPMS) Version 4.5.0

© 2003 - 2015, Consulting Group Runa

© 2015 - 2024, "Process Technologies" Ltd, this document is available under GNU FDL license. RunaWFE Free is an open source system distributed under a LGPL license (http://www.gnu.org/licenses/lgpl.html).

# Quick Start

Windows OS

Linux/Mac OS:

More detailed information: download, installation guide

# Video DemoOvertimeWork and DemoVacation - Creating and Workflow

# Creating "Overtime Work" demo process

The process scenario

Manager offers an over time work to employee. Employee accepts or rejects the offer. Then manager receives the corresponding notification. It is supposed that all managers are members of group “manager” and all employees are members of group “staff”.

Graph creation

Create a new project. Open context menu by right clicking on project, then click on New Process command. Enter “Overtime Work” as the process name. This demo process was developed on BPMN. Choose bpmn language, show swimlane on graph - horizontal layout (the feature of swimlanes shown on business process graph)

Tutorial en 1 1.png

Business process “Overtime Work” has two swimlanes:

  • manager
  • staffrole
Swimlane description:
Swimlane Description
manager Manager who starts the process
staffrole The employee who is selected by manager in the start form and who is asked to work overtime.


Add two elements "Swimlane" to the process diagram window.

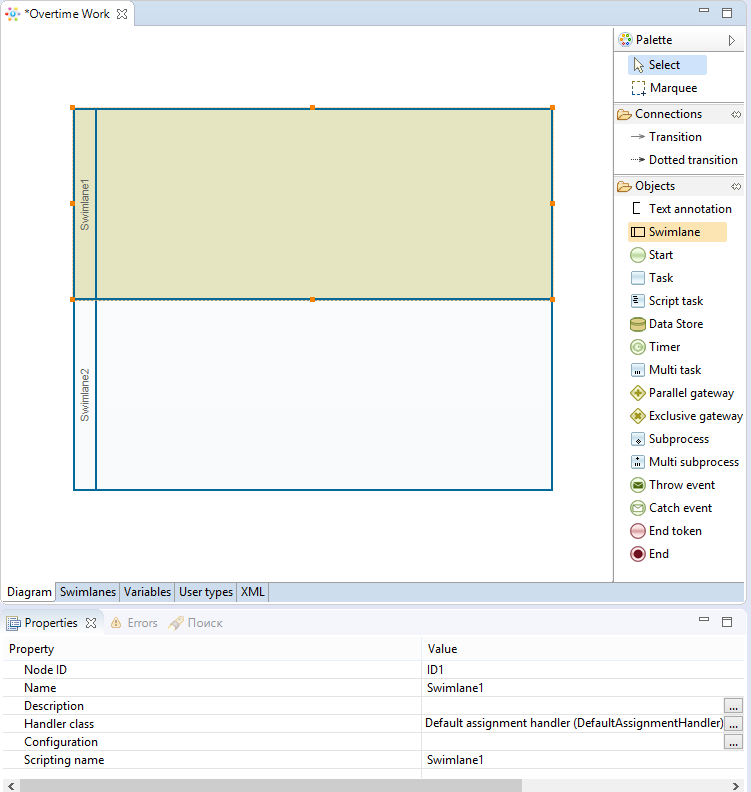

Tutorial en 1 2.png


Click on "Swimlanes" tab.


Tutorial en 1 3.png

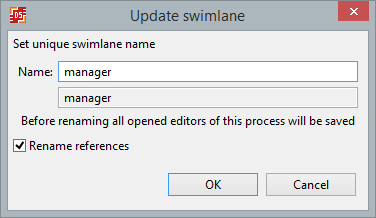

In the opened page select "Swimlane 1" and press "Rename" button. Set new name «manager» and press «ОК». This swimlane is used in the start node and the swimlane will be initialized with the user who starts the process. So there is no need to specify the initializer.

Tutorial en 1 4.png

Similarly rename Swimlane2 to «staffrole».

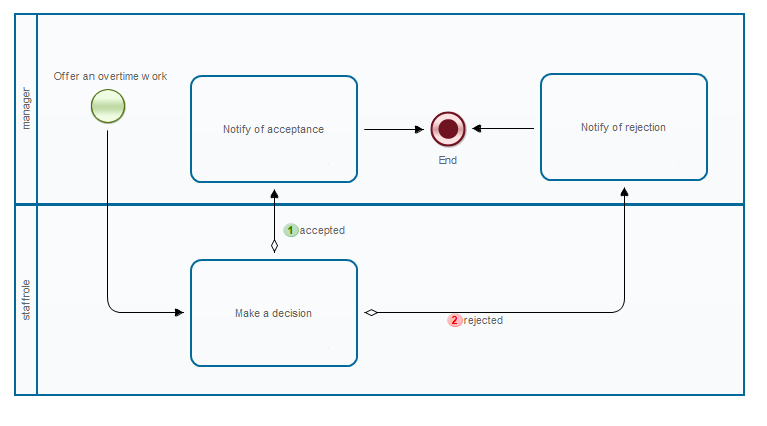

By clicking at palette elements and process diagram window create the following graph for business process.

Tutorial en 1 5.png

Correspondence between business process nodes and swimlanes
Node Swimlane
Offer an overtime work manager
Make a decision staffrole
Notify of rejection manager
Notify of acceptance manager


To change an element name, select an element by clicking on it, then set new name in its properties.

For transitions from the choice state "Make a decision" enter their explicit names "accepted" and "rejected" in their properties. Also select transition color.

Tutorial en 1 6.png

Save process (Ctrl+s).

Creating variables

The following variables are used in the Overtime Work process:
Variable Type Description
since DateTime DateTime when overtime work starts
till DateTime DateTime when overtime work ends
reason String Reason
comment Text Comment
staff_person_comment Text Employee comment


Variables

  • since
  • till
  • reason
  • comment

are initialized in StartState “Offer an overtime work”.

Variables

  • staff_person_comment

are initialized in State “Make a decision”

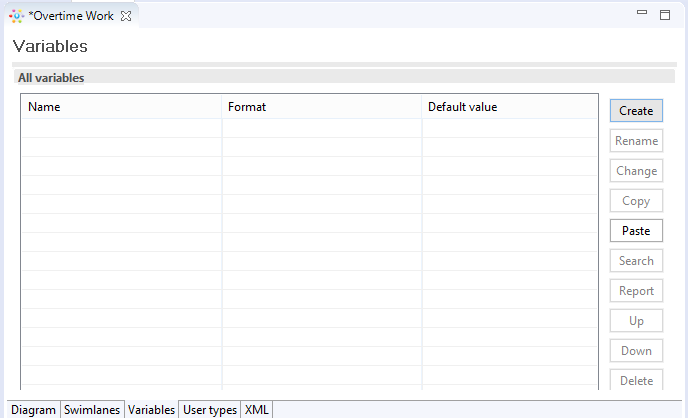

Click on “Variables” tab. Click “Create” button.

Tutorial en 1 7.png

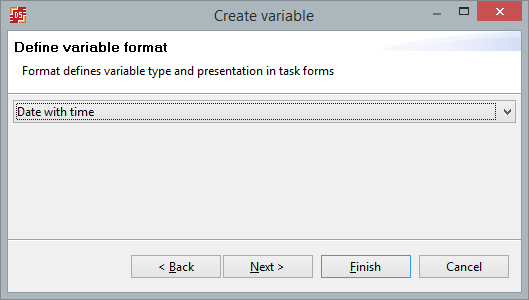

Type in the variable name "since" and click NEXT, then choose date with time as variable format and click "Finish".

Tutorial en 1 8.png

Tutorial en 1 9.png

Similarly create all the others variables of the business process.

Graphical forms creation

Forms components are used to present specific control elements and to present business process variables values in forms. In "Overtime Work" forms with components are used.

Tags used in "Overtime Work":
Freemarker tag Description
Selection from group, GroupMembers Shows the list of group members. Group name can be specified via variable or by value. Also a swimlane that will be initialized with the selected group member ID must be set. In "Overtime Work" “staff” group is used, it is set by value. The selected group member is used to initialize “staffrole” swimlane.
Variable input, InputVariable A field is created to input variable value according to its type
Variable output, DisplayVariable Output the variable value in read only mode.

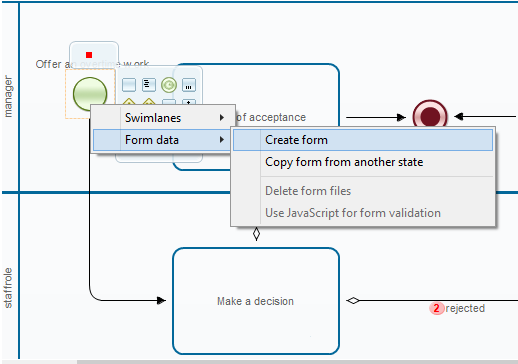

Click on “Offer an overtime work” state, then choose “Form data/Create form”.

Tutorial en 1 10.png

Select form type - "Free form layout form"

Tutorial en 1 11.png

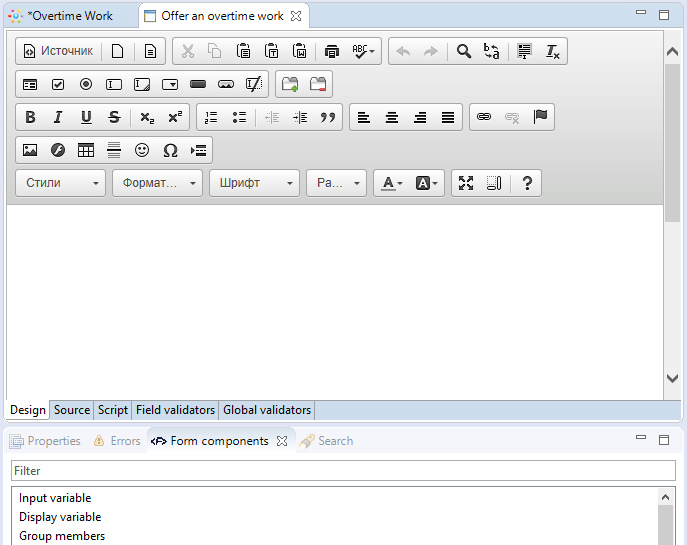

After choosing create (or edit) form option the graphical form design tab will open:

Tutorial en 1 12.png

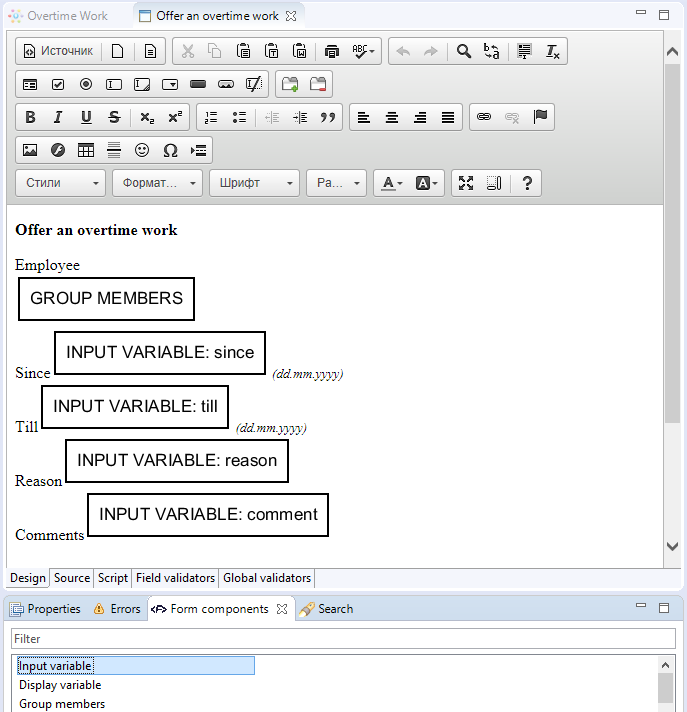

Drag components "Input variable", "Display variable" and "Group members" from the "Form Components" tab onto design window.

Tutorial en 1 13.png

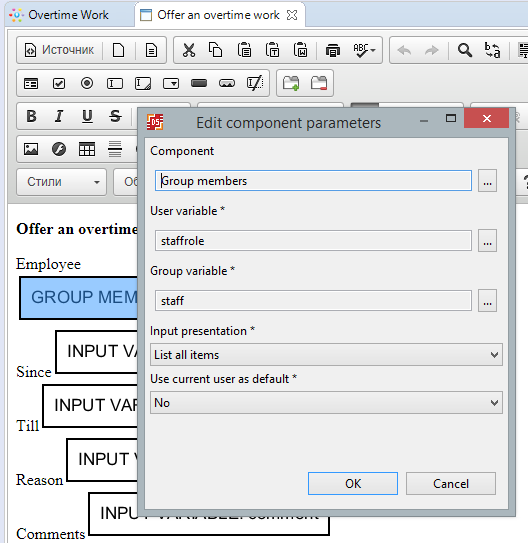

Double click on "Group members" component, select "staffrole" as "User variable" and type in value "staff" in the "Group variable" field.

Tutorial en 1 14.png


Use "InputVariable" component to create input elements for the other business process variables:

  • since
  • till
  • reason
  • comment

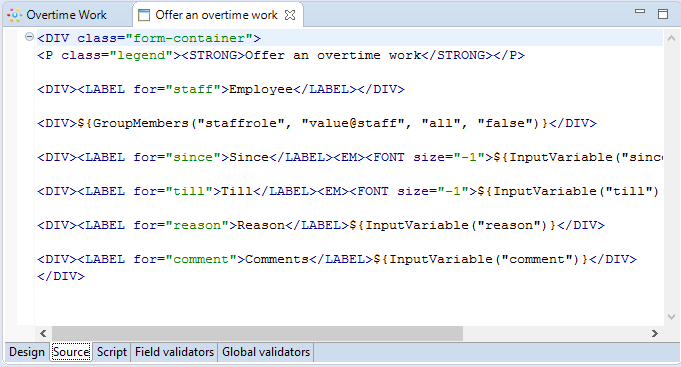

If you open "Source" tab you can see html code of the page

Tutorial en 1 15.png


Create templated form for other action-nodes.

Click on “Make a decision” state, then choose “Form data/Create form”. Select form type - "Templated form"

Tutorial en 1 16.png

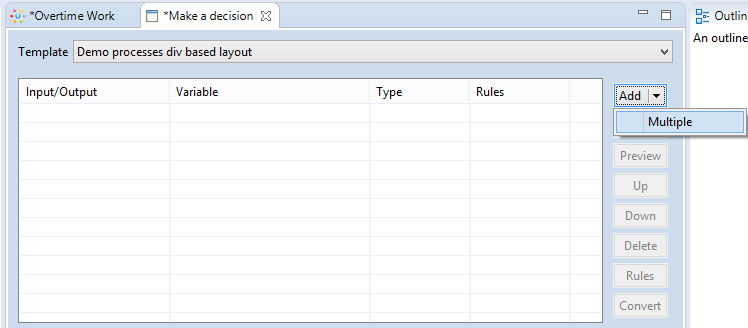

Press "Add->Multiple"

Tutorial en 1 17.png

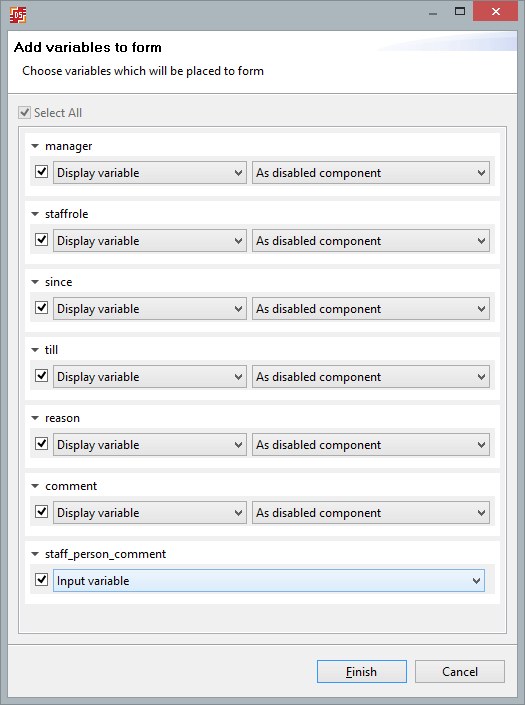

Choose variables which will be placed to form

Tutorial en 1 18.png

Display variable for "manager", "staffrole", "since", "till", "reason", "comment". And input variable for "staff_person_comment"

Tutorial en 1 19.png

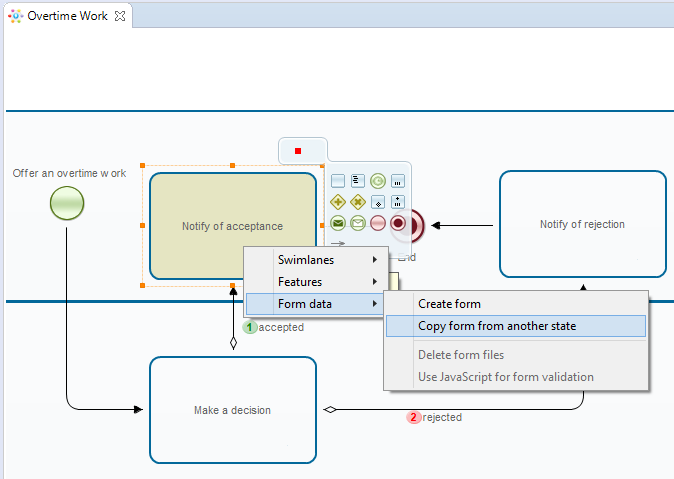

Copy templated forms for action-node "Notify of acceptance" from node "Make a decision".

Tutorial en 1 20.png

Tutorial en 1 21.png

  • choose template "Table 2 columns layout: variable name = value",
  • change "Dispay variable" for "staff_person_comment"
  • set value "Overtime work - accepted" for "Title" parametr
  • save fom and process

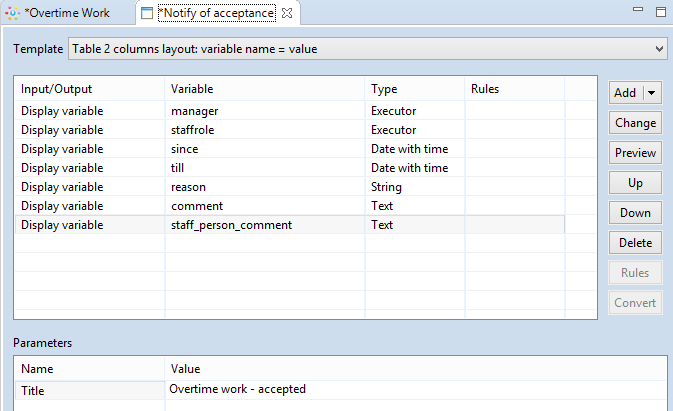

Tutorial en 1 22.png


Copy templated forms for action-node "Notify of rejection" from node "Notify of acceptance"

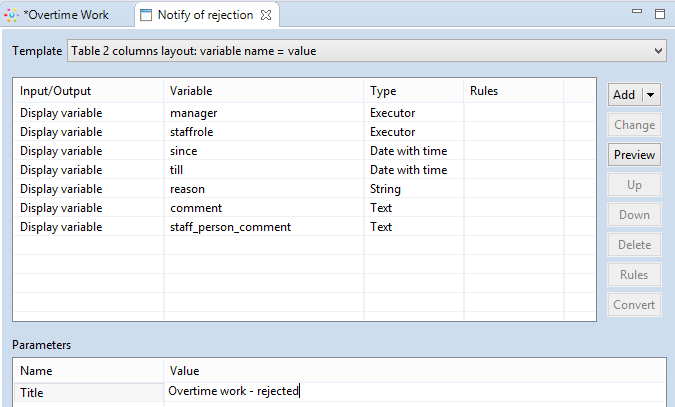

Tutorial en 1 23.png

  • set value "Overtime work - rejected" for "Title" parametr
  • save fom and process

Export process definition

The RunawWFE Server (simulator) must be running

Export process:

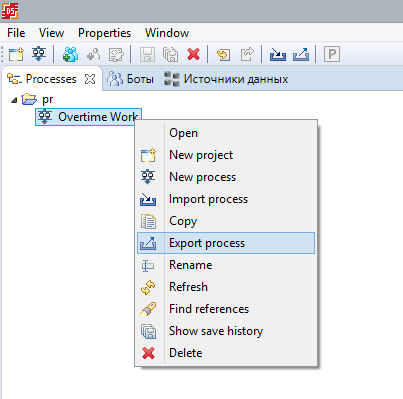

Tutorial en 1 24.png

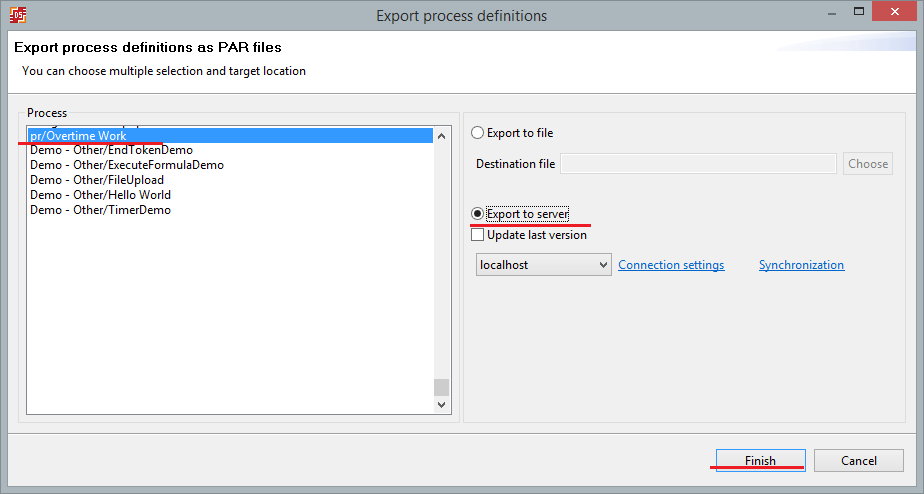

Click on process, choose "Export to server" and press "Finish"

Tutorial en 1 25.png

Process execution

After starting the server (simulator), its graphical interface is available at http://localhost:8080/wfe

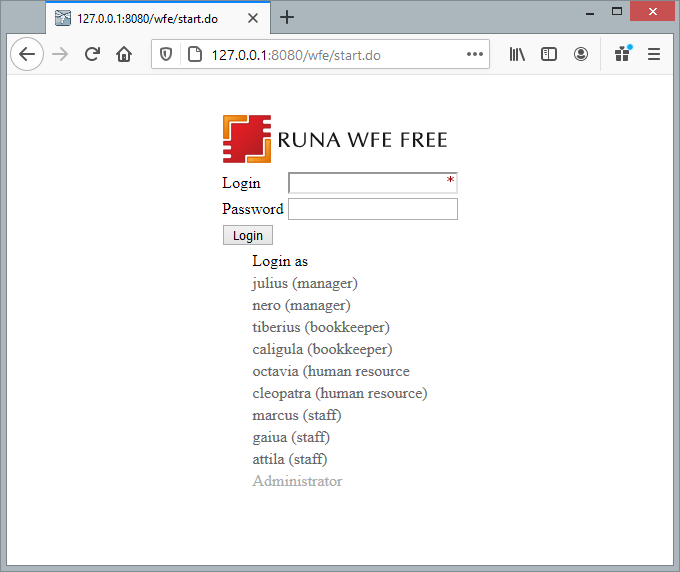

A web-browser, opened at the above address, should display a page to enter user login and password. (Administrator login is «Administrator» (case sensitive) and password is «wf»).

Tutorial en 1 26.png


Log in as a user from the group of managers - "julius" or "nero" (password is «123»).

Tutorial en 1 27.png


Start business process "Overtime Work"

Tutorial en 1 28.png


Select an employee - "attila", choose dates and enter the reason for overtime.

Then click "Start" button.

Tutorial en 1 29.png


Log in as "attila" and open his task list. The page of the “Task List” menu item contains a list of tasks for the user.

Tutorial en 1 30.png

When user clicks on the name of the task the corresponding form appears:

Tutorial en 1 31.png

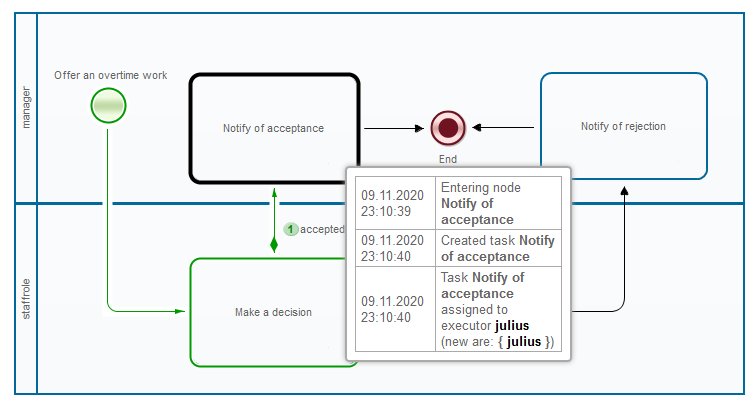

Make a decision, choose accept or reject button. Manager Julius will be notified of your decision.

Tutorial en 1 32.png

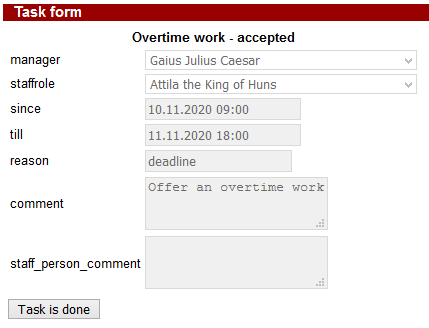

Log in as "julius" and open task "Notify of ..."

Tutorial en 1 33.png

Complete the task by clicking the "Task is done" button.

Repeat the business process under other users.

# Creating "Vacation" demo process

The process scenario

An employee submits a request for a vacation. The employee's boss approves or rejects the request. If the request is rejected the employee receives a notification. If the request is approved, then a request to the human resource department is formed and a human resource inspector makes a check if all the rules and technologies are followed correctly. If the human resource inspector doesn't approve the request it returns to the employee's boss, else if all the rules and technologies are followed correctly the business process passes to forming a hard copy request for a vacation and to signing the official order. The employee receives a task to "submit a hard copy request" to the HR department and simultaneously the HR inspector gets a task to "receive a hard copy request". After performing this task the HR inspector receives task to "make an official order". When all these tasks are performed the business process ends.

Graph creation

Create a new project, then right click on it and select "new process" command. Type "Vacation" as the new process name. Choose BPMN language, show swimlane on graph - hidden.

Tutorial en 1 34.png

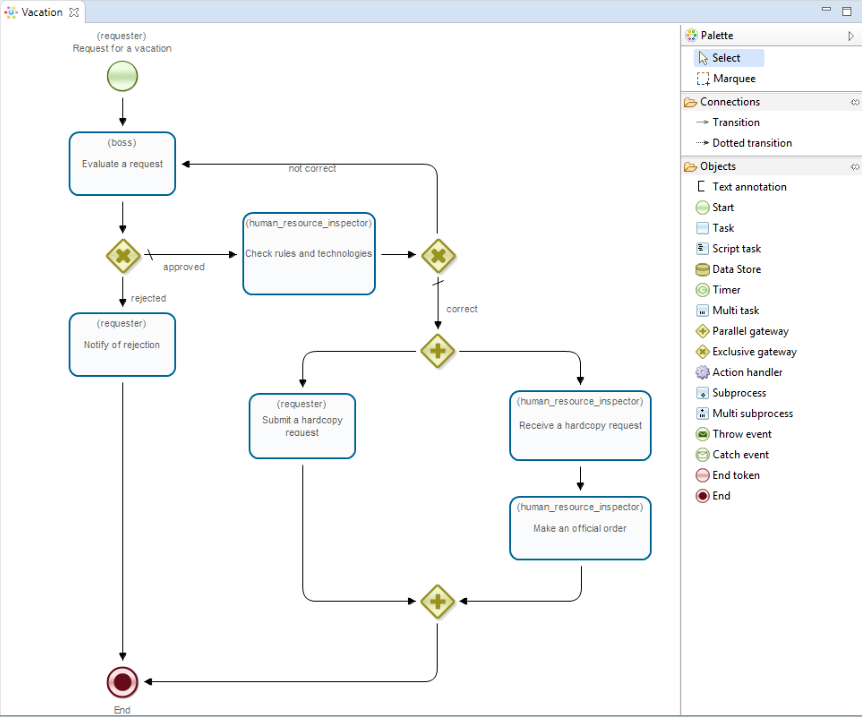

Make a double click on the "Vacation" process in the project process list opening the business process diagram tab. Selecting and applying the palette elements draw the following diagram of the business process:

Tutorial en 1 35.png

Use the following elements: exclusive gateways, tasks, parallel gateways, start and end, transitions.

To change element name, in case they differ from default, make a click on the element change the name in element properties. For the transitions that come out of the exclusive gateways assign names «approved»/«rejected» and «not correct»/«correct» by clicking on them and changing their names in property tab in the bottom of the screen.

Swimlanes creation

In this business process there are 3 swimlanes:

  • requester
  • boss
  • human resource inspector
Swimlane's description:
Swimlane Description
requester An employee who submits a vacation request
boss A boss of the employee who started the business process
human resource inspector One of the employees of the HR department (human resource group), who executes the check of the rules and technologies for the request and prepares and sees that the official order is signed.
Swimlanes and activity nodes relation:
Node Swimlane
Request for a vacation requester
Evaluate a request boss
Notify of rejection requester
Check rules and technologies human resource inspector
Submit a hardcopy request requester
Receive a hardcopy request human resource inspector
Make an official order human resource inspector

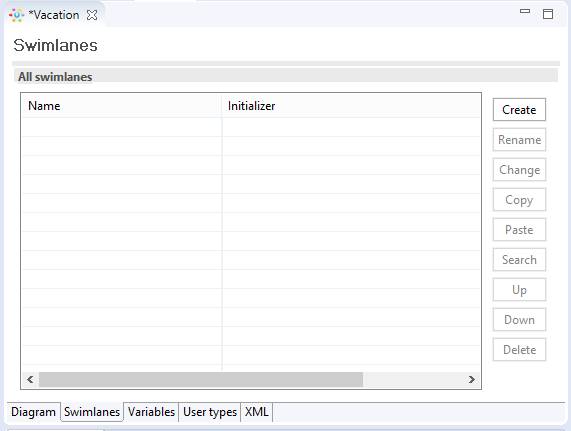

Click on the Swimlane tab.

Tutorial en 1 36.png

On the appeared page click on the "Create" button.

Type in swimlane name "requester" and click "OK". This swimlane is used in the start state so there´s no need to specify initializer, it is initialized by the user who starts the process.

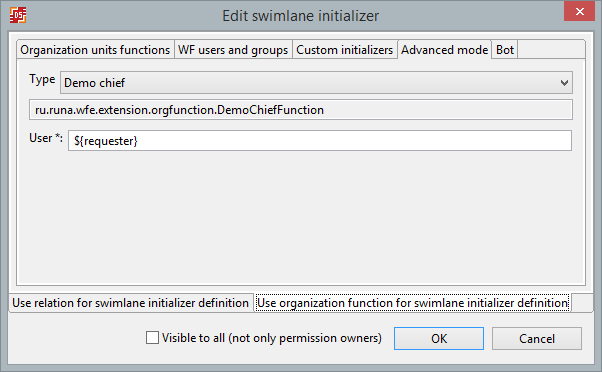

Add "boss" swimlane, specify initializer DemoChiefFunction with "requester" as parameter.

Tutorial en 1 37.png

ru.runa.wfe.extension.orgfunction.DemoChiefFunction – “Boss(demo)”, returns the immediate boss of the user defined in demo.chief.properties

demo.chief.properties

...
^tiberius$=julius
^marcus$=julius
^gaiua$=nero
^attila$=nero
^caligula$=nero
...

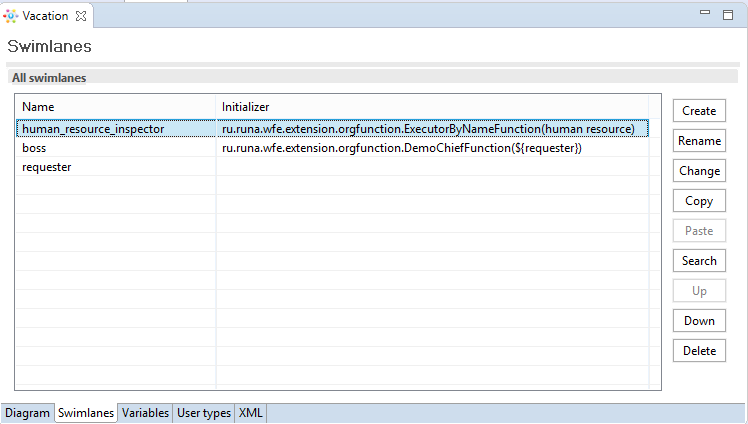

Similarly create "human_resource_inspector" swimlane. Use ExecutorByNameFunction initializer function with group "human resource" as parameter.

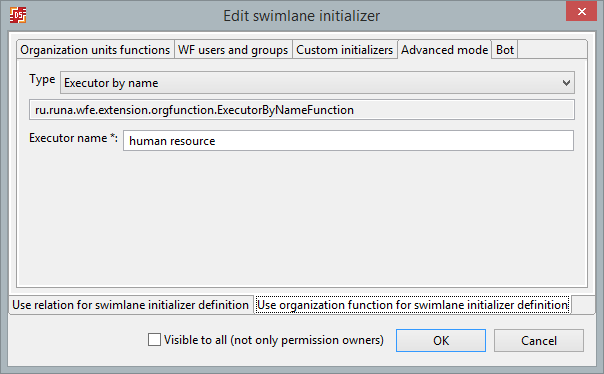

Tutorial en 1 38.png

Tutorial en 1 39.png

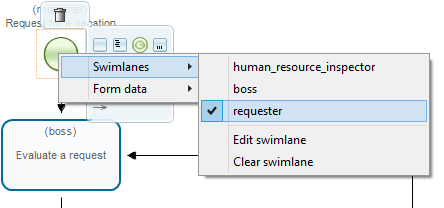

Open "Diagram" tab again, select the start state “Request for a vacation”, in its properties click on right part of the Swimlane\Value property and in the presented list select "requester".

Tutorial en 1 40.png

Similarly set swimlanes to the other states.

Variables creation

There are the following variables in the process:


Variable Type Description
since Date Date of the vacation start
till Date Date of the vacation end
reason String Reason
comment Text Comment
boss_comment Text boss comment
bossDecision Boolean boss decision
human_resource_inspector_comment Text Human resource inspector comment
humanResourceInspectorCheckResult Boolean The result of HR inspector check
official_order_number String Order number
official_order_date Date The order date

Variables

  • since
  • till
  • reason
  • comment

must be initialized in the start node “Request for a vacation”.

Variables

  • boss_comment
  • bossDecision

must be initialized in the “Evaluate a request” activity node.

Variables

  • human_resource_inspector_comment
  • humanResourceInspectorCheckResult

must be initialized in “Check rules and technologies” activity node.

Variables

  • official_order_number
  • official_order_date

must be initialized in “Make an official order” activity node.


Click on "Variables" tab. Click on "Create"

Tutorial en 1 41.png

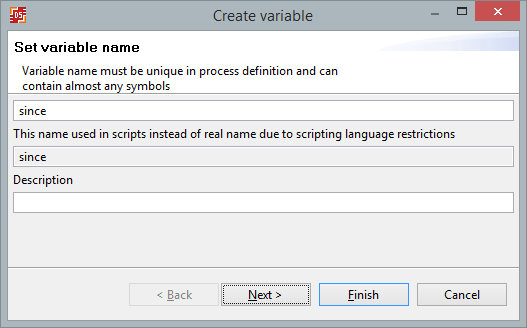

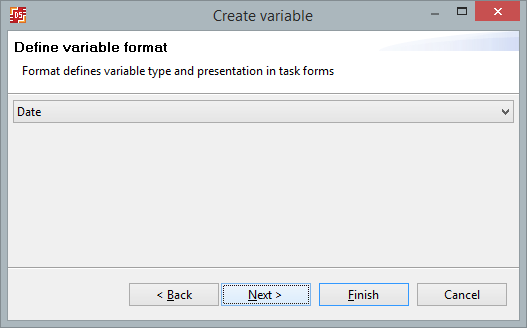

Type the variable name "since", then choose Date as format.

Tutorial en 1 42.png

Tutorial en 1 43.png

Similarly create all the rest of the business process variables.

Creating a condition for the Exclusive gateway

There are two Exclusive gateways in this process: “Is approved?” and “Is correct?” that we need to provide conditions for.

“Is approved?” gateway:

If the bossDecision variable value equals to "true", the control is passed to «Check rules and technologies» activity node. Otherwise the control is passed to «Notify of rejection» activity node.

“Is correct?” gateway: If the humanResourceInspectorCheckResult variable value equals to "true", the control is passed to the Parallel gateway (a split to simultaneous tasks “Submit a hardcopy request” and “Receive a hardcopy request”). Otherwise the control is passed to «Evaluate a request» activity node.


Choose "Diagram" tab, click on the «Is approved?» exlusive gateway, right-click on it to select "Edit configuration" menu item.

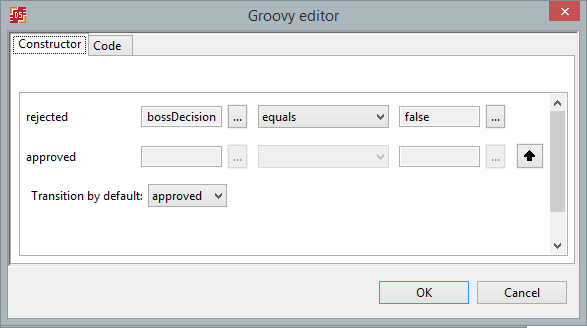

In the shown form for the "rejected" transition select variable bossDecision, select "equals" function and set the value to "false". In the default transition choose "approved":

Tutorial en 1 44.png

Click «OK».

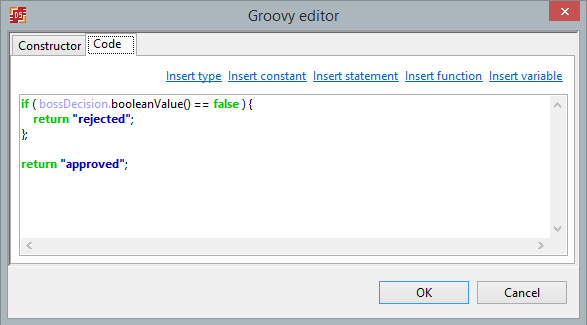

You can see the formula code on the "code" tab and it can be edited there.

Tutorial en 1 45.png

Similarly the condition for “Is correct?” gateway is created.

Graphical forms creation

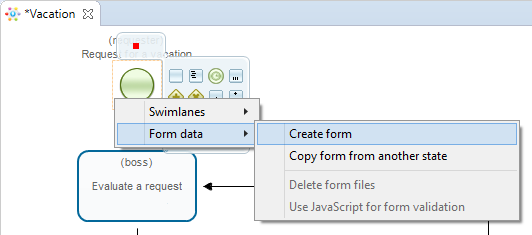

Right click on the start node «Request for a vacation» of the business-process diagram and select in the pop-up menu "Form data> Create form":

Tutorial en 1 46.png

In the drop-down list select form type - "Free form layout form"

Tutorial en 1 47.png

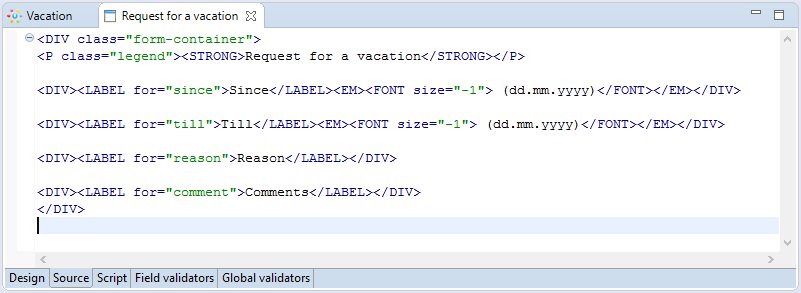

Select "Source" tab, end enter html text

Tutorial en 1 48.png

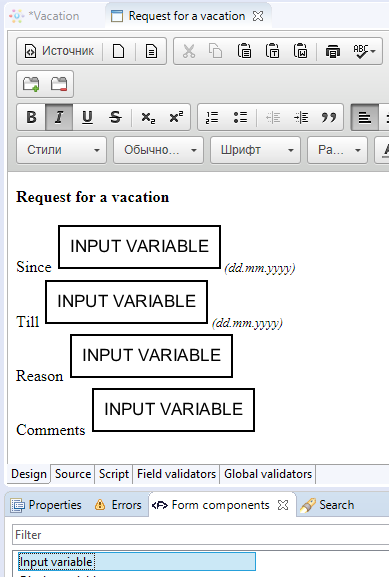

Switch to design and drag four components "Input variable" from the "Form Components" tab onto form.

Tutorial en 1 49.png

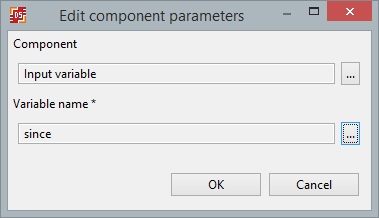

Select variable "since" in the parameters of the first component "Input variable"

Tutorial en 1 50.png

Use "InputVariable" component to create input elements for the other business process variables:

  • till
  • reason
  • comment

Save form and process.

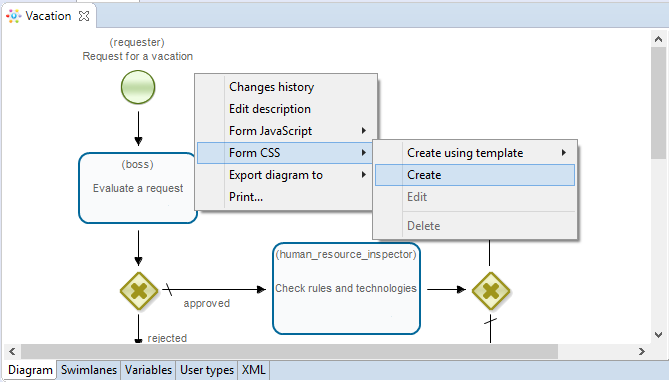

Create form CSS. Right click on empty space of the process diagram and select "Form CSS->Create"

Tutorial en 1 51.png

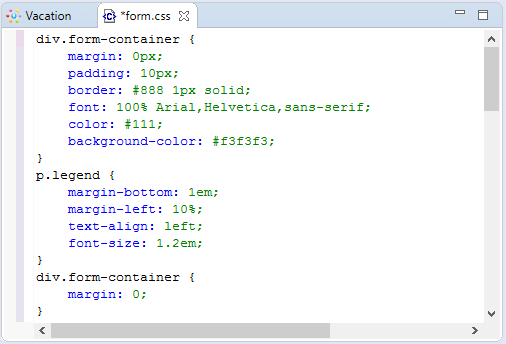

In the opened window you can edit form.css file, set styles in it:

div.form-container {
       margin: 0px;
       padding: 10px;
       border: #888 1px solid;
       font: 100% Arial,Helvetica,sans-serif;
       color: #111;
       background-color: #f3f3f3;
}
p.legend {
       margin-bottom: 1em;
       margin-left: 10%;
       text-align: left;
       font-size: 1.2em;
}
div.form-container {
       margin: 0;
}
div.form-container fieldset {
       margin: 10px 0;
       padding: 10px;
}
div.form-container legend {
       color: #666;
}
div.form-container fieldset div {
       padding: 0.25em 0;
}
div.form-container label {
       margin-right: 10px;
       padding-right: 10px;
       width: 150px;
       display: block;
       float: left;
       text-align: right;
       position: relative;
}
div.form-container label em {
       position: absolute; right: 0;
       font-size: 120%;
       font-style: normal; color: #C00;
}
div.form-container input:focus, div.form-container textarea:focus {
       background-color: #FFC;
       border-color: #FC6;
}
div.form-container input {
       width: 300px;
       padding-left: 5px;
}
div.form-container select {
       width: 300px;
}
div.form-container textarea {
       width: 300px;
       height: 100px;
       padding: 5px;
       overflow: auto;
}
.readOnlyText {
       background-color: #f3f3f3;
}
div.form-container div.controlset label, div.form-container div.controlset input {
       display: inline;
       float: none;
       width: auto;
}
div.form-container div.controlset {
       margin-left: 170px;
}

Tutorial en 1 52.png

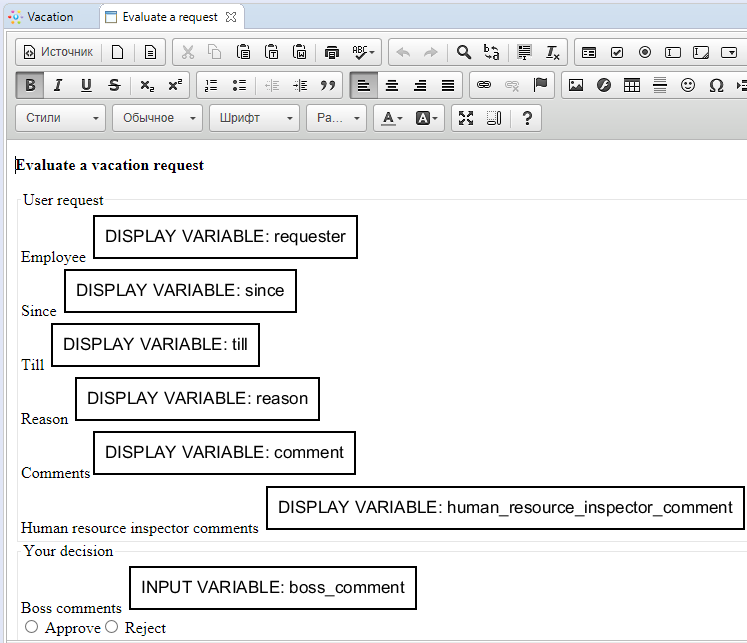

Similarly the rest forms for the other activity nodes can be created. Use copy form from another node.

  • Evaluate a request

Tutorial en 1 53.png

Use the radio buttons to select either "Approve" or "Reject".

<DIV class="controlset">
  <INPUT id="bossDecisionApprove" name="bossDecision" type="radio" value="true"/> <LABEL for="bossDecisionApprove">Approve</LABEL>
  <INPUT id="bossDecisionDisapprove" name="bossDecision" type="radio" value="false"/> <LABEL for="bossDecisionDisapprove">Reject</LABEL>
</DIV>

where "bossDecision" is a variable name

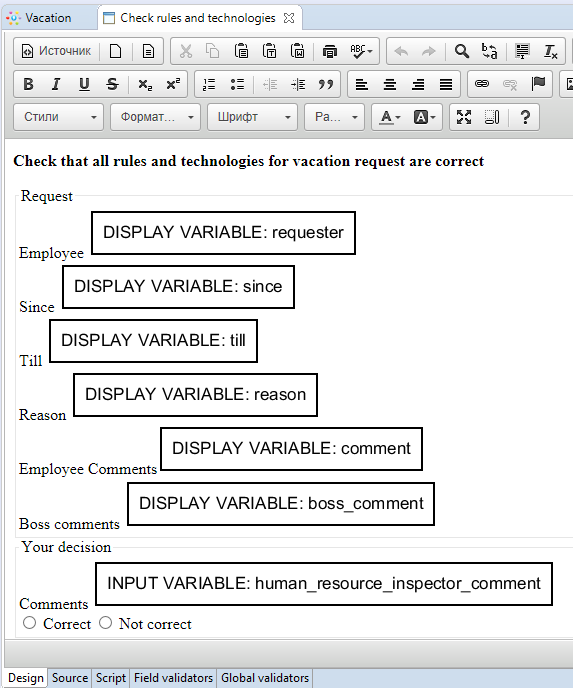

  • Check rules and technologies

Tutorial en 1 54.png

Use the radio buttons to select either "Correct" or "Not correct".

<DIV class="controlset">
  <INPUT id="ok" name="humanResourceInspectorCheckResult" type="radio" value="true"/> <LABEL for="ok">Correct</LABEL>
  <INPUT id="no" name="humanResourceInspectorCheckResult" type="radio" value="false"/> <LABEL for="no">Not correct</LABEL>
</DIV>

where "humanResourceInspectorCheckResult" is a variable name


  • Notify of rejection

Tutorial en 1 55.png

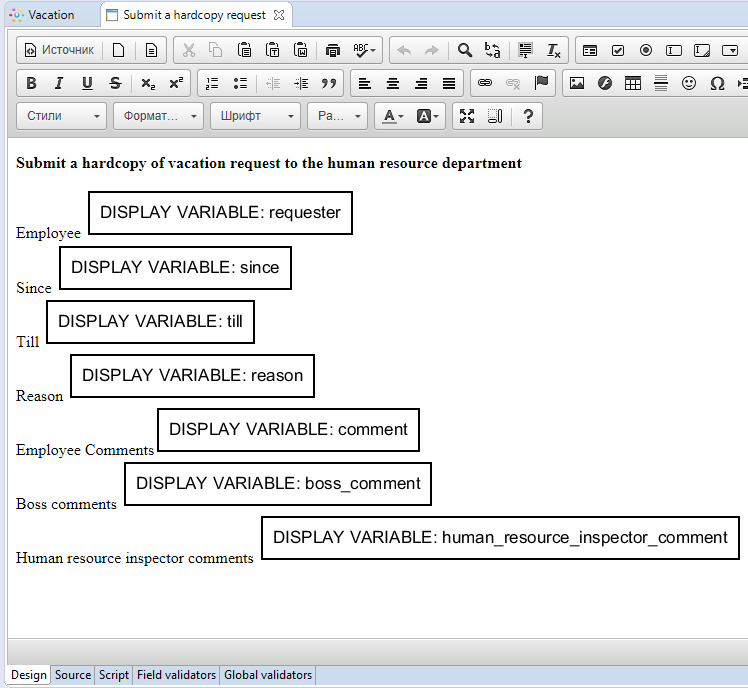

  • Submit a hardcopy request

Tutorial en 1 56.png

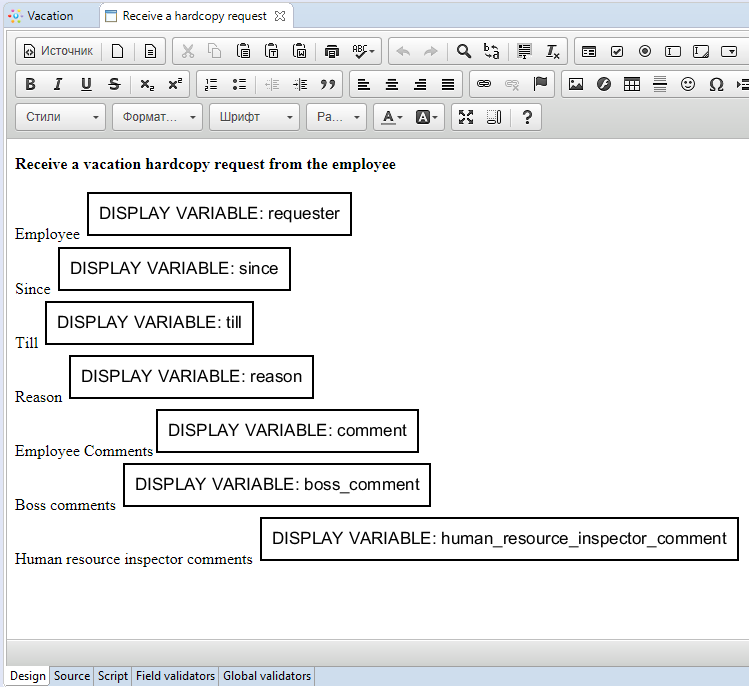

  • Receive a hardcopy request

Tutorial en 1 57.png


  • Make an official order

Tutorial en 1 58.png

Variables values validation

Form elements can be required or optional for input. There may be rules for several form elements. For instance, date-since cannot be later than date-till. There may be some limitations specific for types: for numbers it can be more or less than some number and for strings it can be the limitation of the string length, etc.

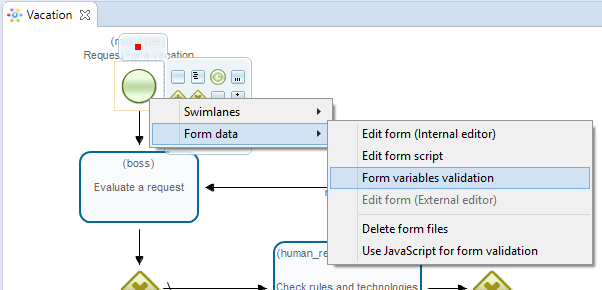

To create validations, right click on the node and select "Form > Form variables validation"

Tutorial en 1 59.png


In the shown form there will be all the business process variables listed. All the variables that are used in the current form will be marked by checked checkboxes. If unchecked then a variable will not be initialized in this node. For a chosen variable there will be all available validations in the validations list. When a validation is selected then the validation parameters are available for edit below the validations list.


Add validators for variables in start form

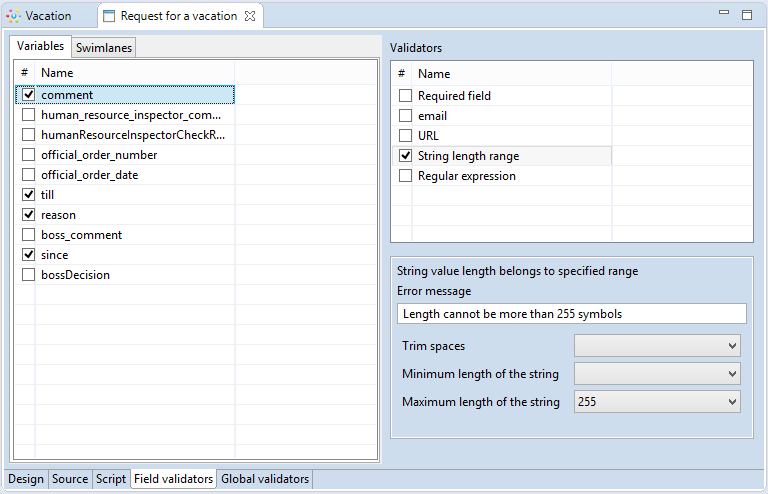

  • comment

Select variable and check "String length range". Enter error message - "Length cannot be more than 255 symbols", and set maximum length of the string - 255

Tutorial en 1 60.png

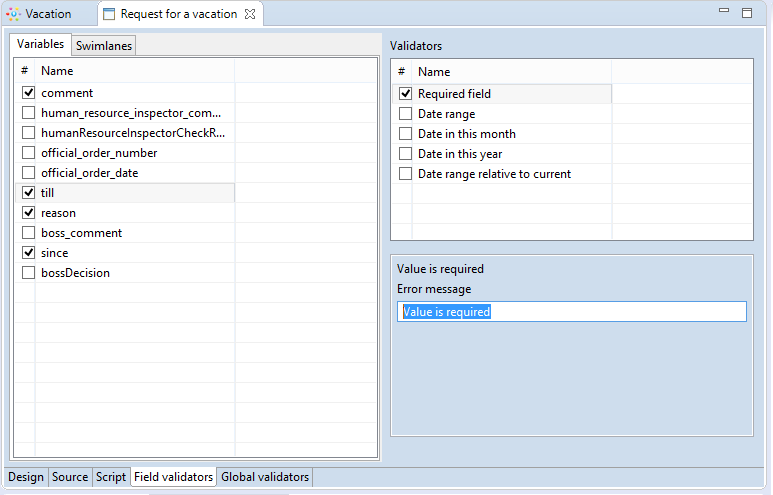

  • till, since

Tutorial en 1 61.png

Tutorial en 1 62.png

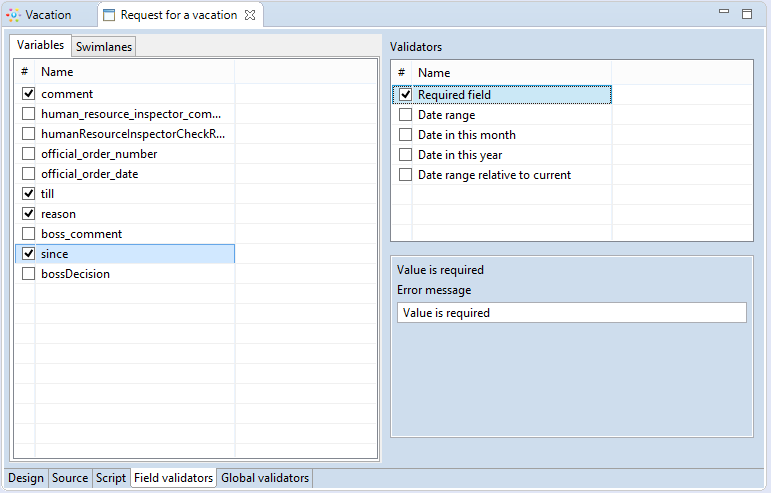

Select variable and check "Required field". Enter error message - "Value is required"

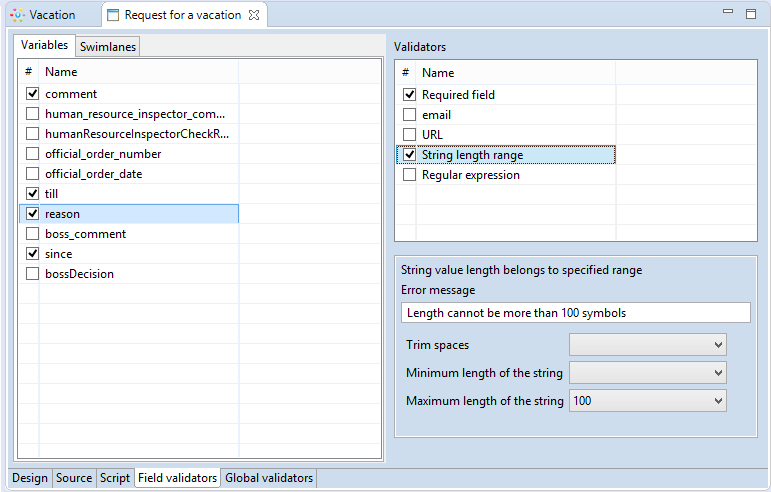

  • reason

Tutorial en 1 63.png

Add validators "Required field" and "String length range" (maximum length of the string - 100)

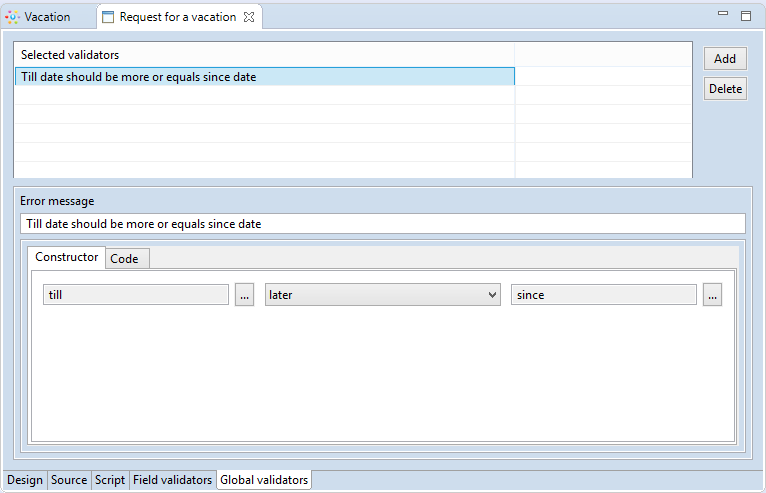

Next add validation for several variables togeth. Switch to "Global validators" tab. In the shown editor several variables validation may be created. For instance, date-since cannot be later than date-till.

Tutorial en 1 64.png

Click "Add", enter error message "Till date should be more or equals since date", choose "till" later "since" in constructor window.

Similarly add validation for variables

  • boss_comment - "String length range" (maximum length of the string - 255) in "Evaluate a request" form
  • bossDecision - "Required field" in "Evaluate a request" form
  • human_resource_inspectro_comment - "String length range" (maximum length of the string - 255) in "Check rules and technologies" form
  • humanResourceInspectorCheckResult - "Required field" in "Check rules and technologies" form
  • official_order_number - "String length range" (maximum length of the string - 50) in "Make an official order" form
  • official_order_date - "Required field" in "Make an official order" form

Export process definition

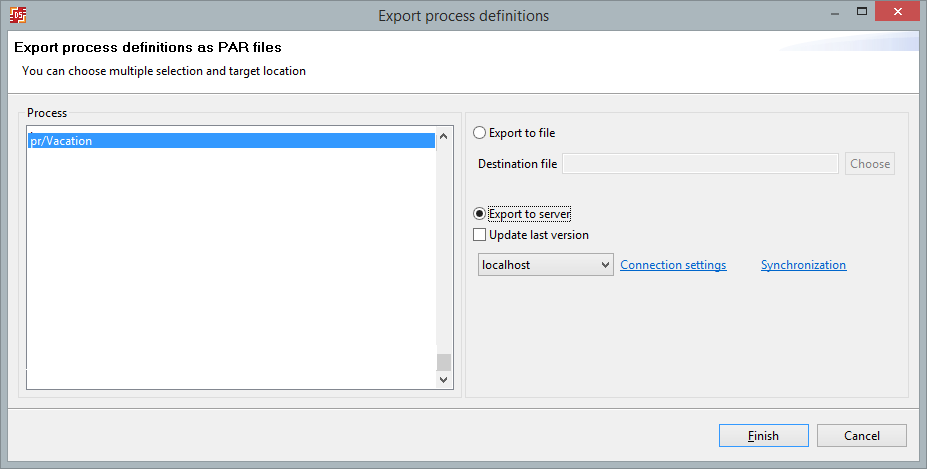

To deploy the process directly to the server it is possible to use "Export to server"

Tutorial en 1 65.png

Process execution

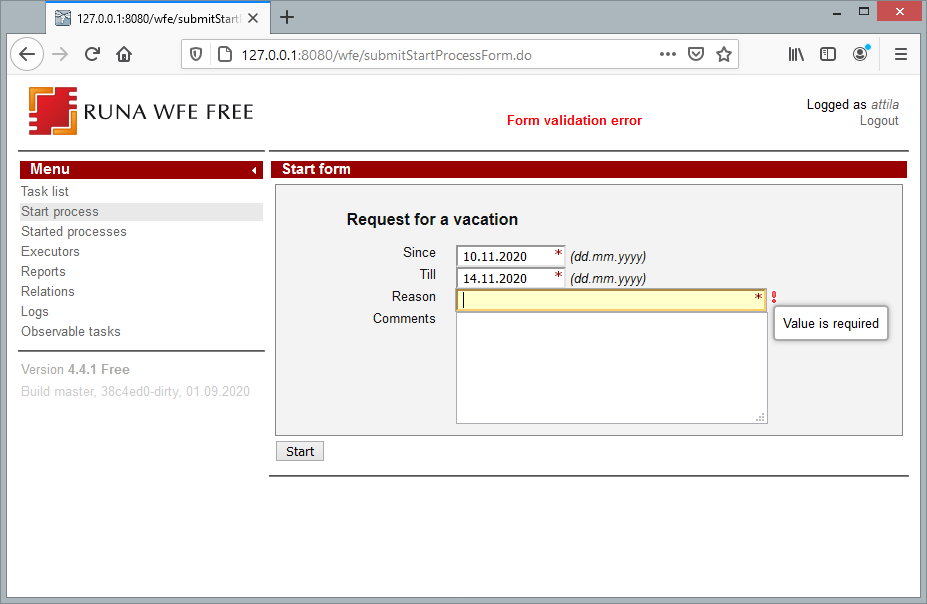

Log in as a user from the staff group, for example - "attila" (password is «123»).

Click on the menu item "Start process", open start form business process "Vacation"

Enter all required fields

  • Enter the time interval for the vacation
  • Fill the fields «reason»
  • Click "Start"

Tutorial en 1 66.png

The new instance of "Vacation" business process will start and boss will receive the "evaluate a request" task. The boss of Attila is Nero.

Click "Logout" and log in as nero.

Open "evaluate a request" task. Choose "accept", fill the «boss comment» and click «Task is done»

Tutorial en 1 67.png

Click "Logout"


Login as member of the “human resource” group. (Cleopatra)

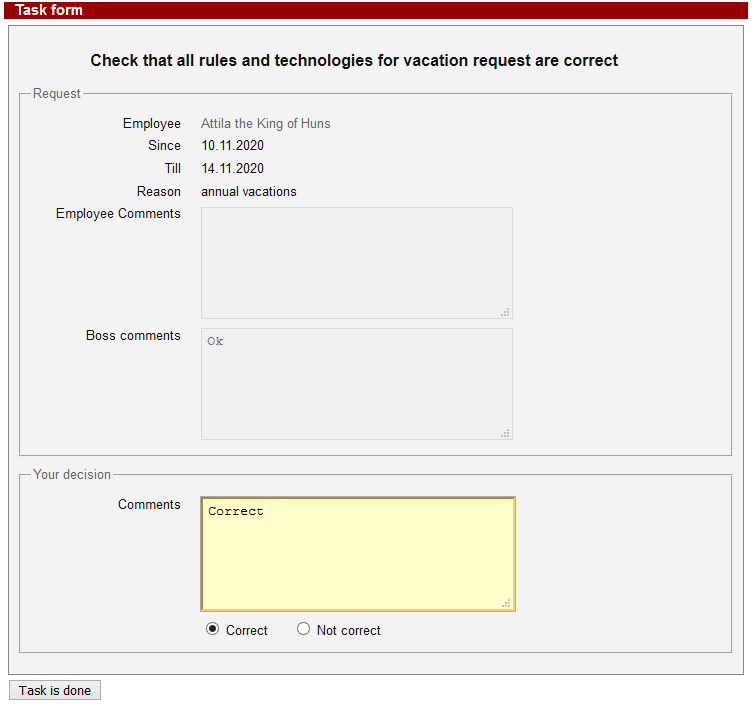

Open task "check rules and technologies"

Tutorial en 1 68.png

Choose "correct", fill the "human resource inspector comment" and click "Task is done"

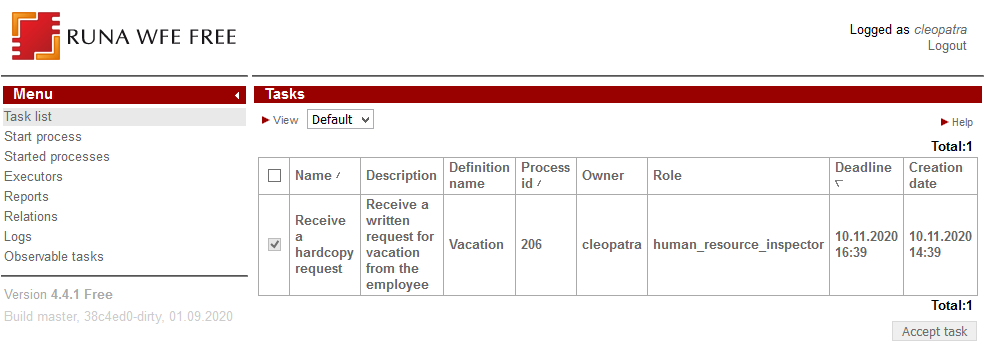

Open task list and choose "Receive a hardcopy request" task

Tutorial en 1 69.png

Tutorial en 1 70.png

Complete the task by clicking the "Task is done" button.

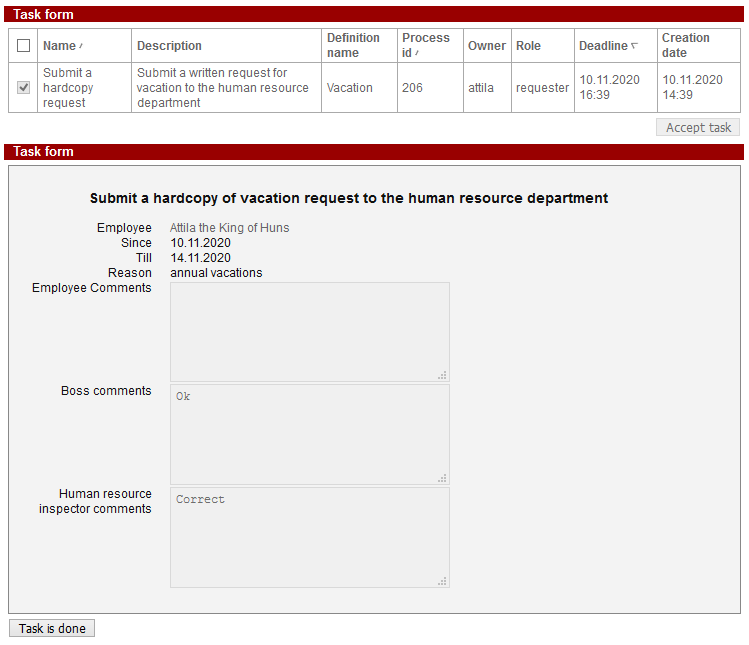

Log in as "attila" and open task "Submit a hardcopy request".

Tutorial en 1 71.png

Complete the task.

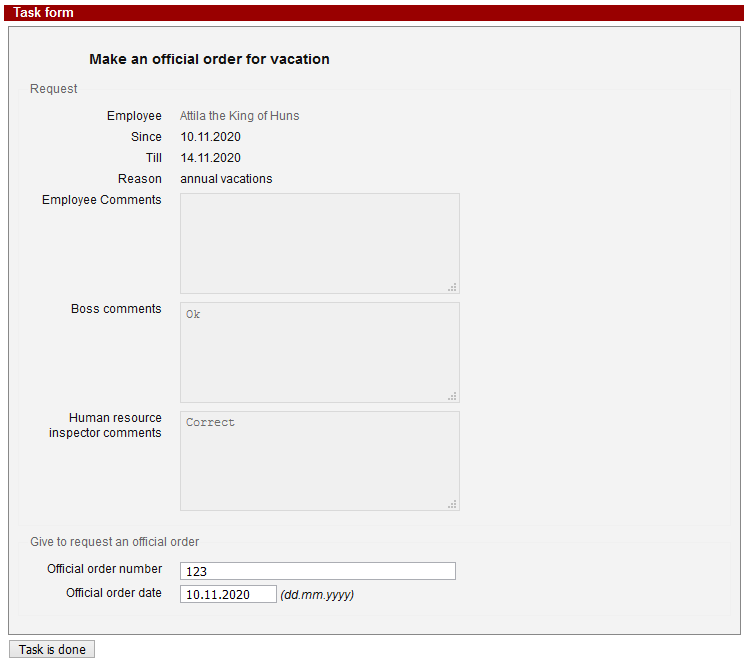

Log in as "cleopatra". Open "Make an official order" task.

Tutorial en 1 72.png

Fill the "Official order number" and "Official order date" fields.

Complete the task.

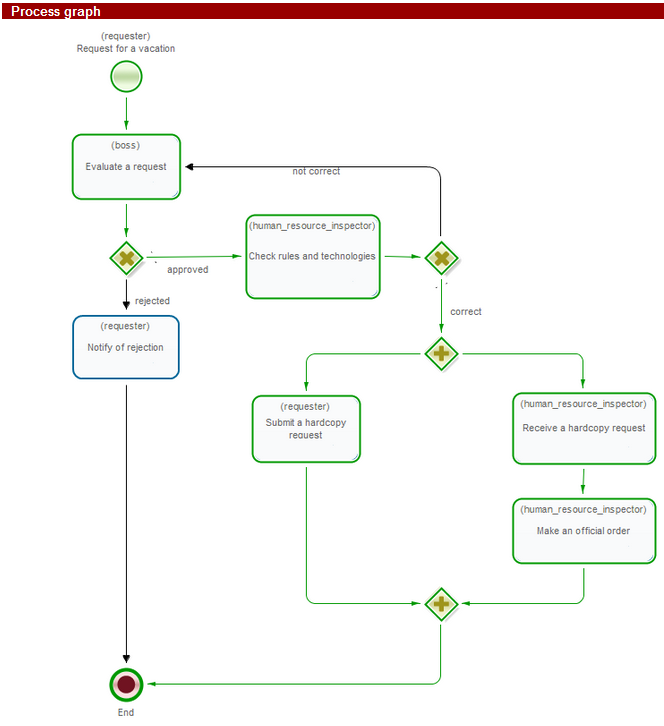

Tutorial en 1 73.png

The business process has ended.
